Introduction:

1 input voltage: + 5.0V

2 size: 69mm * 39mm * 12mm (PCB size).

3 analog output: CVBS, YPbPr, LR (audio).

4 digital audio and video output: HDMI output.

5. Video support resolution: 480p / I; 576p/i; 720p/i; 1080p/i。 CVBS only supports 480p / I output.

6 WiFi support: IEEE 802.11 a/b/g/n, 802.3; Band range: 2.4 ~ 2.4835 GHz band or 4.915 ~ 5.825 GHz band

7. Support DLNA transmission protocol and miracast screen protocol. Support Apple phone, pad push and screen projection.

8 support local USB audio and video playback.

9. Support WiFi counter control.

Support USB local upgrade, online server upgrade, mobile phone upgrade and other software update methods, and can timely support the latest mobile devices.

11. It provides the supporting Android APK, which can automatically search the device for miracast or DLNA actions.

12. Support IOS wired image. Through the data cable of Apple mobile phone, the mobile phone screen can be easily transmitted to other screens without delay and good effect.

Main functions: 1. Apple wired / wireless image 2. Android wired / wireless image 3. Android wired anti control

System requirements: ios8, ios9, ios10 / Android 4.4.2 and above

Mobile phone: iphone4s and above / Android phone / IPD

Auxiliary equipment: external dual band dual antenna / one original USB data cable / one original apple data cable

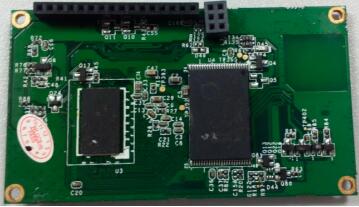

Related renderings:

In the field of wireless wired intelligent interconnection, our company is a powerful software and hardware R & D and manufacturer. The software and hardware are fully customized according to the different interfaces, sizes and consumption habits of customers! Please contact us if you need it.

Tel.: 0755-29359390; Mobile phone: 13923465891; Wechat: same as mobile phone number; QQ：2271860079.

Application scope and scenarios of the company's R & D products: various vehicles: private cars, trucks, buses, buses, etc. Advertising machine, TV, TV box, projector, hotel, multi person teaching system, multi person office conference system, home theater, intelligent furniture, Internet of things, etc.
